Specification

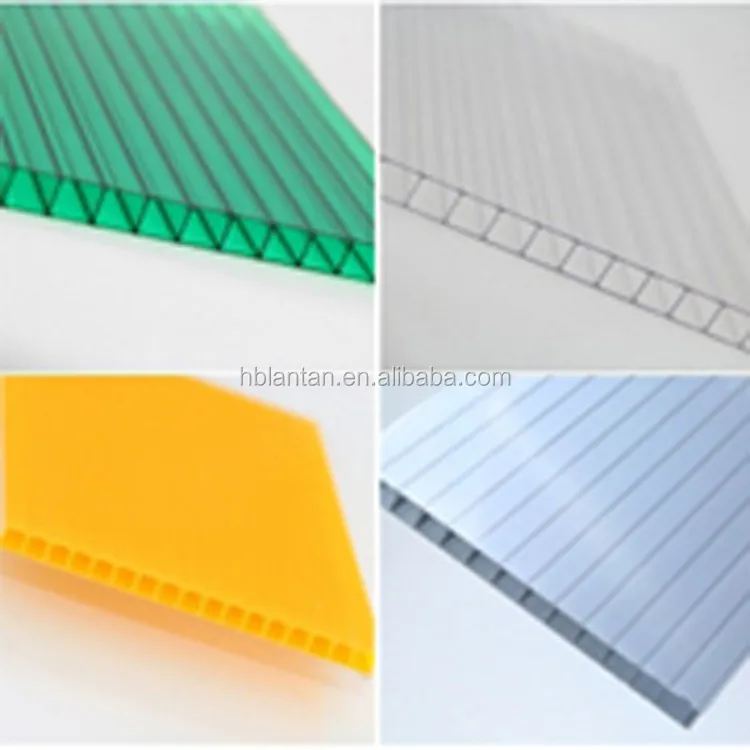

Polycarbonate Hollow sheet Type:
1, Twin Wall Polycarbonate Hollow sheet.
Specification size:
Thickness: 4.0-12.0mm.
Lenght: 6meters, Or as client's required.
Width: 1.22m/1.56m/1.82m/2.1m,OR customization.
Min bending Radius: 0.7-2.1meters.2, Triple wall polycarbonate Hollow sheet.
Specification size:
Thickness: 8.0-25mm.
Lenght: 6meters, Or as client's required.
Width: 1.22m/1.56m/1.82m/2.1m,OR customization.
Min bending Radius: 1.4-4.375meters.
Thickness: 8.0-25mm.
Lenght: 6meters, Or as client's required.
Width: 1.22m/1.56m/1.82m/2.1m,OR customization.
Min bending Radius: 1.4-4.375meters.

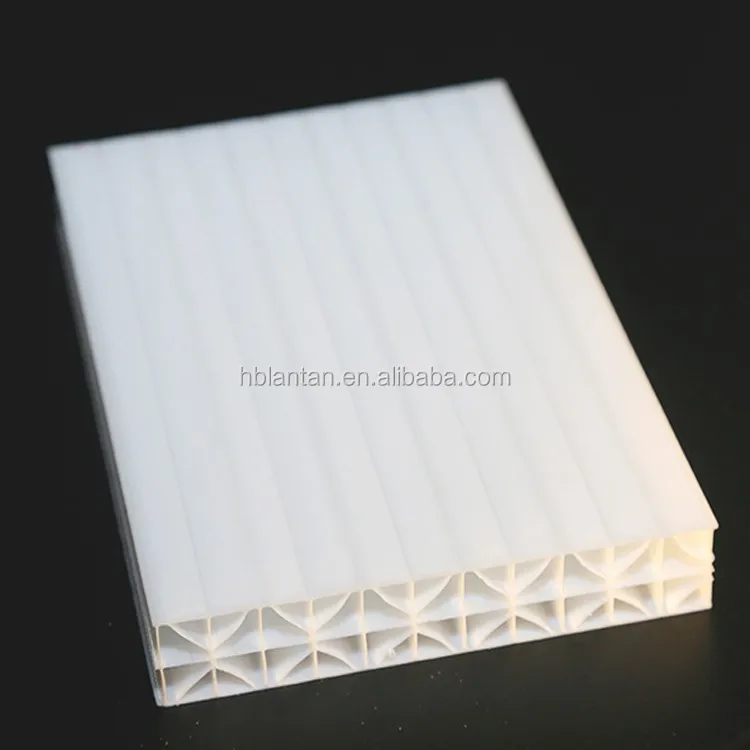

3, Four wall Polycarbonate Hollow sheet.
Specification size:
Thickness: 10-20mm.
Lenght: 6meters, Or as client's required.
Width: 1.22m/1.56m/1.82m/2.1m,OR customization.
Min bending Radius: 1.75-3.7meters.
Thickness: 10-20mm.
Lenght: 6meters, Or as client's required.
Width: 1.22m/1.56m/1.82m/2.1m,OR customization.
Min bending Radius: 1.75-3.7meters.
4, Honeycomb polycarbonate Hollow sheet.
Polycarbonate Hollow sheet Technical index:
Impact Strength J/M :850.
Light Transmission % :40~82.
Specific Gravity g/cm³ :1.2.
Coefficient of Thermsl Expansion mm/m.℃ :0.065.
Heat Conductivity c :3.0-3.9.
Service Temperature ℃ :-40℃~+120℃.
Heat Deflection Temperature ℃ :140.
Tensile Strength n/mm² :≥60.
Bending Strength n/mm² :100.
Bending elastic modulus mpa: 2400.
Tensile Stress at Break mpa: ≥65.
Elongation at Break % ≥:130.
Light Transmission % :40~82.
Specific Gravity g/cm³ :1.2.
Coefficient of Thermsl Expansion mm/m.℃ :0.065.
Heat Conductivity c :3.0-3.9.
Service Temperature ℃ :-40℃~+120℃.
Heat Deflection Temperature ℃ :140.
Tensile Strength n/mm² :≥60.
Bending Strength n/mm² :100.
Bending elastic modulus mpa: 2400.
Tensile Stress at Break mpa: ≥65.
Elongation at Break % ≥:130.
Product Description
Product Features:
1, Light weight
2, High heat insulation
3, Good light transmission
4, Very high impact strength
2, High heat insulation
3, Good light transmission
4, Very high impact strength
5, Simply processed and installed
6, Good weather resistance and UV protection
7, Good pervious to light.
8. Flame retardancy is strong.
Product Application:
1. Roofing skylight for office building,department store, hotel, stadium, school.
2. Soundproof shields on express ways.
3. LED diffused, Advertising lamp boxes, sign board.Telepohne booths.
4. Anti-riot shield, bullet resistant material, Bank ATMs.
5. Agricultural greenhouses, zoos, botanical gardens.
6. Swimming Pools roofing/cover/sheet.
7. Lighting for corridors, balcony, passages and subway entries, walkways.
8. Walls, roofs,windows,screens,shower enclosure.
9. Instrument and machine windscreen.
2. Soundproof shields on express ways.
3. LED diffused, Advertising lamp boxes, sign board.Telepohne booths.
4. Anti-riot shield, bullet resistant material, Bank ATMs.
5. Agricultural greenhouses, zoos, botanical gardens.
6. Swimming Pools roofing/cover/sheet.
7. Lighting for corridors, balcony, passages and subway entries, walkways.
8. Walls, roofs,windows,screens,shower enclosure.
9. Instrument and machine windscreen.

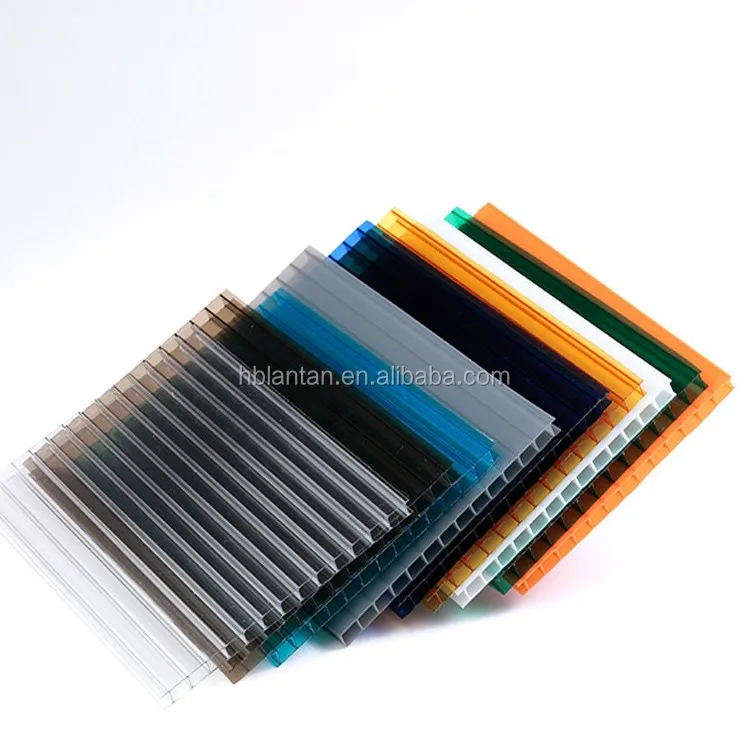

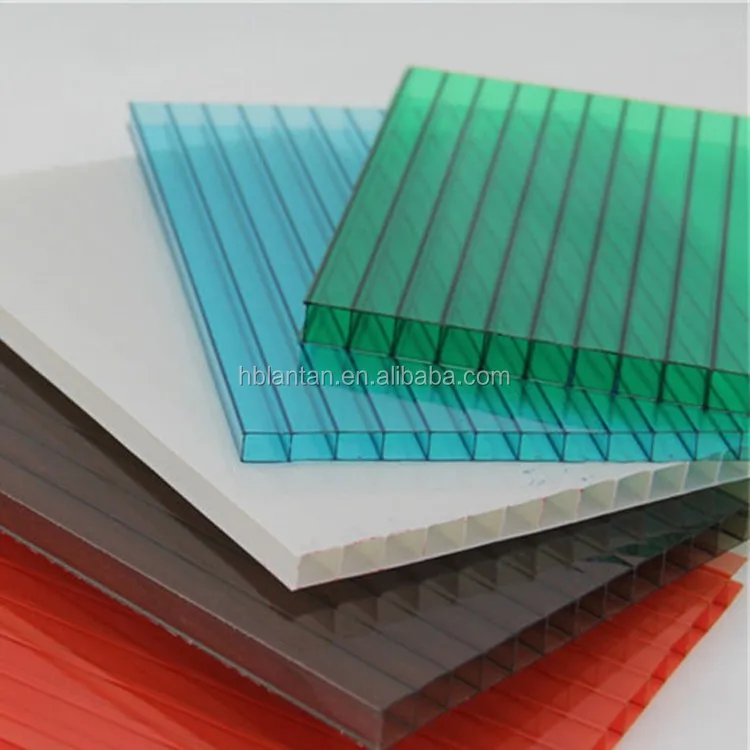

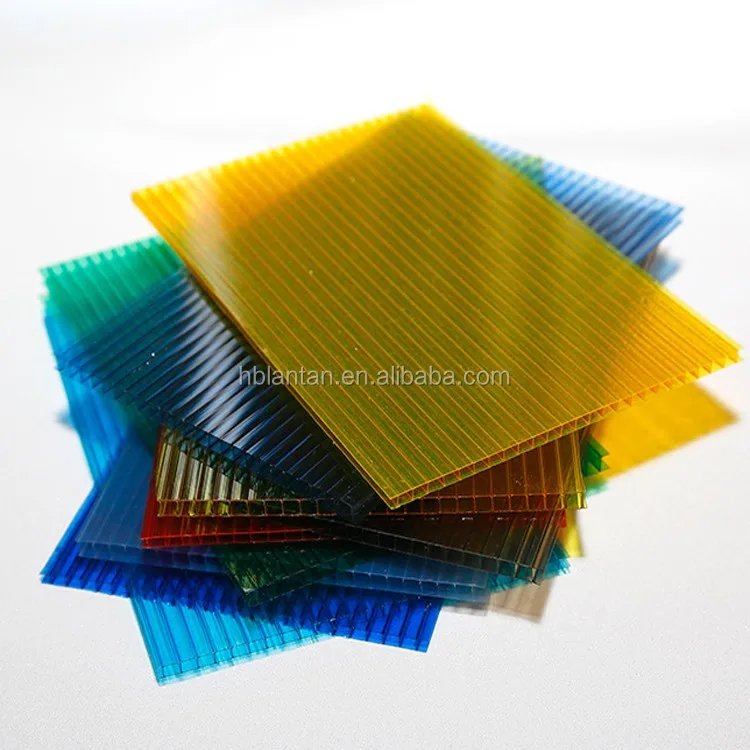

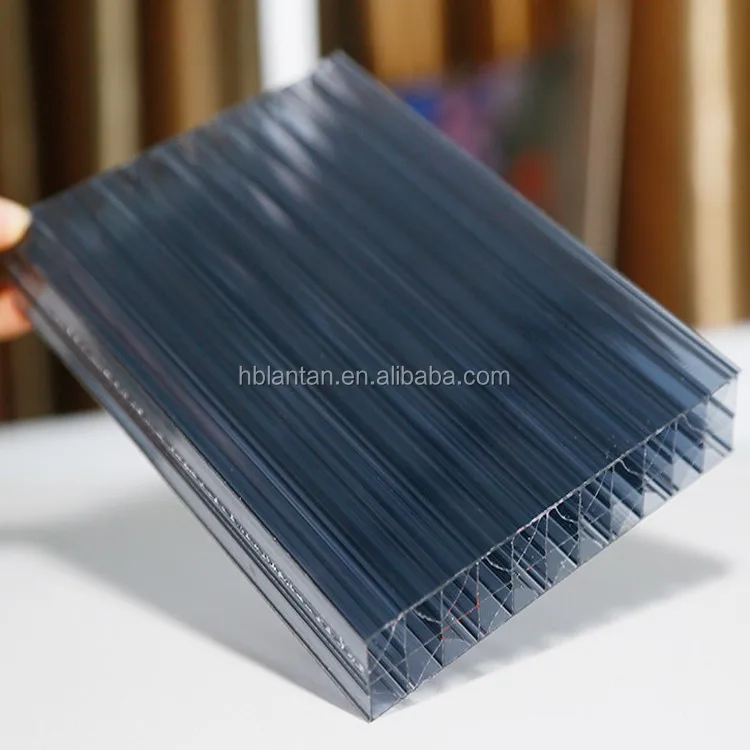

Detailed Images
Our Company
Company Profile
Founded in 2010, Hebei Lantan Import & Export Trade Co.,Limited, Aprofessional production and export company, Have many cooperation Plastic pipes and sheets manufacturer which integrates design, production, Company boss paid a lot of stock from the manufacturer, With fastest delivery and transport capacity.
Main production and export products are as follows:
PE pipe series, PC sheet series, PMMA sheet series, PVC sheet series, PPR pipe series, PVC pipe series,
PB pipe series, PE-RT pipe series, FRP cable protection pipe, HDPE large diameter corrugated pipe, Steel reinforced spiral corrugated pipe, HDPE silicon core pipe, HDPE porous plum tube/square hole grid tube,
And all pipes and fittings.
Hebei Lantan Import and Export Trade Co.,Limited values “ Quality, Customer, Credit” first.

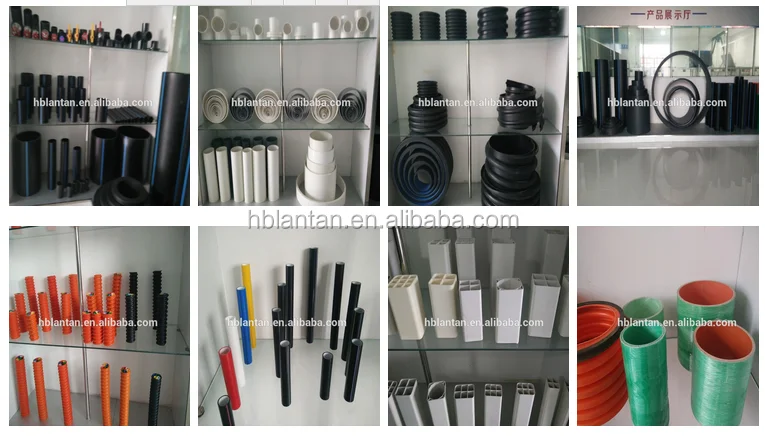

Pipes And Sheets Exhibition:

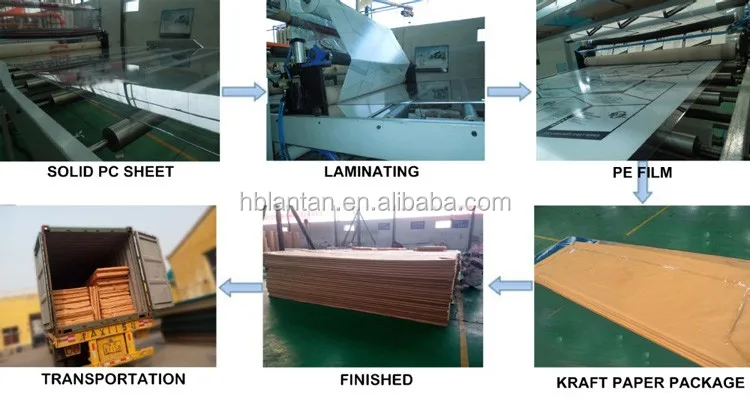

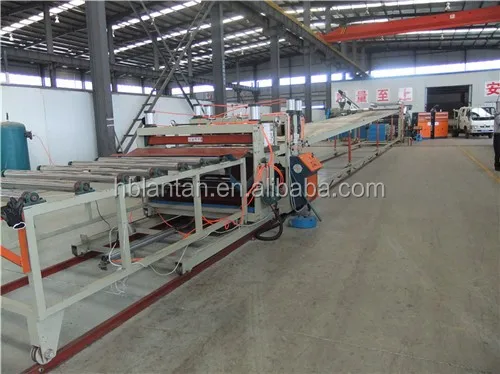

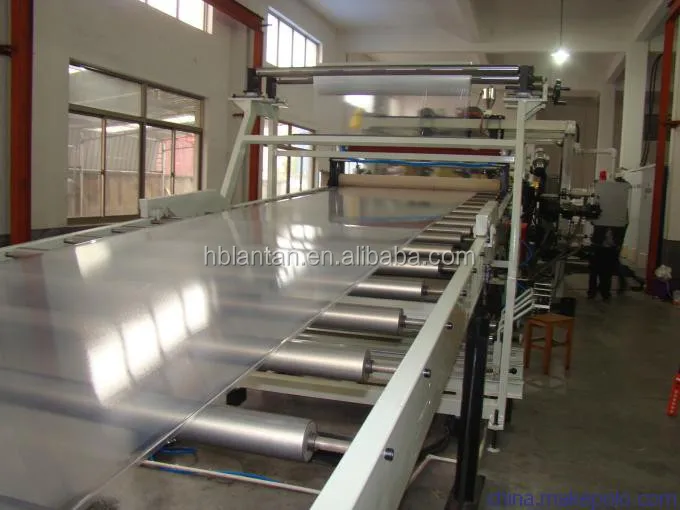

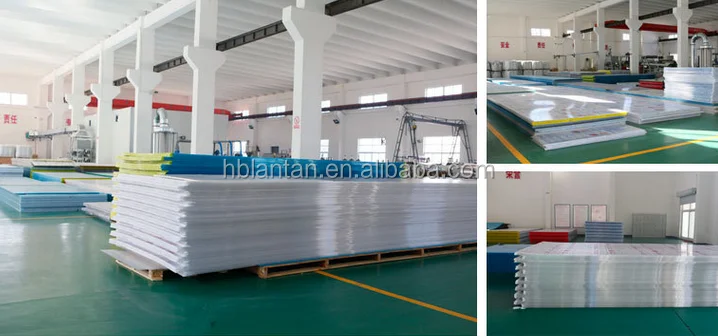

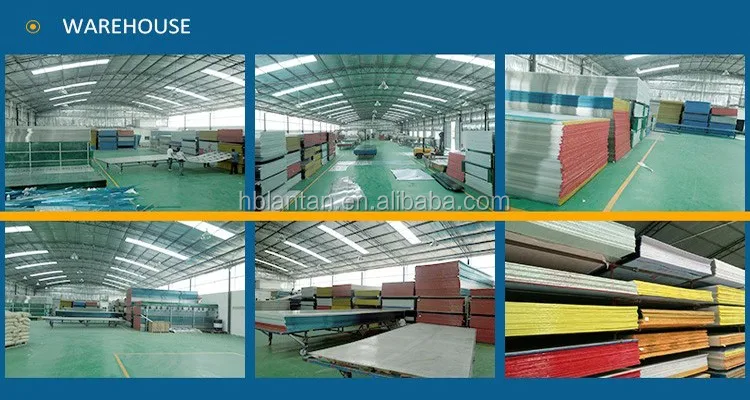

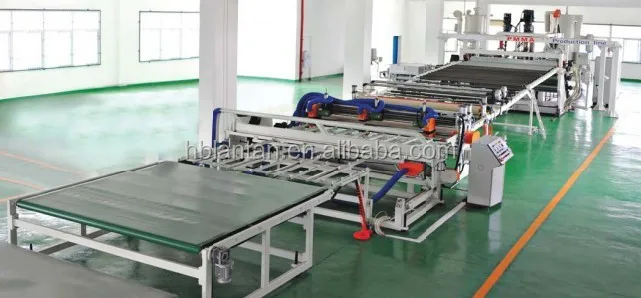

Production and Packing:

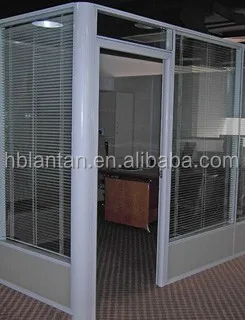

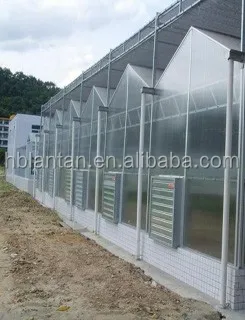

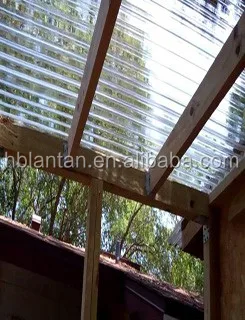

Application:

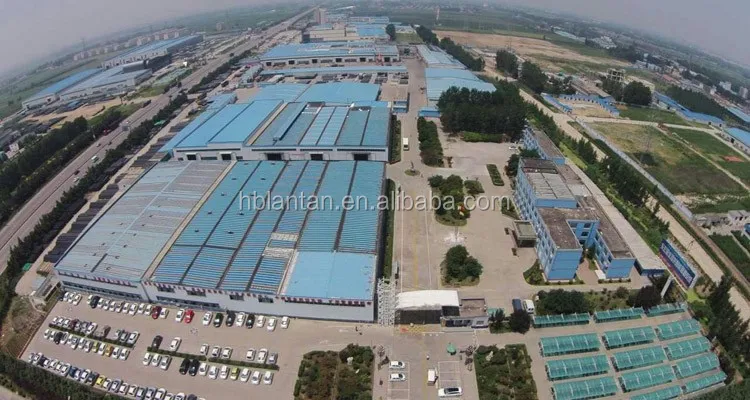

Factory panoramic MAP

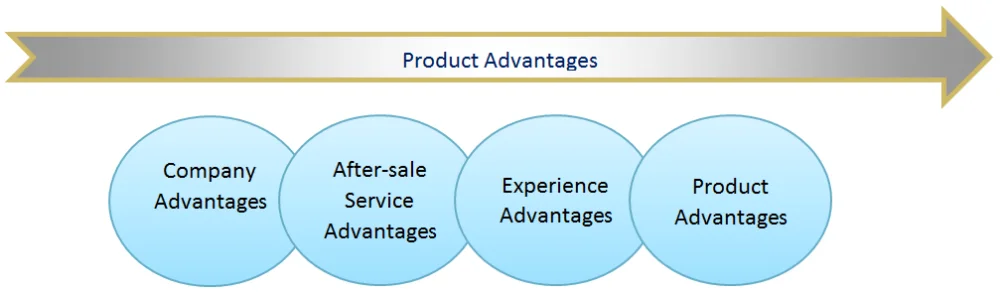

Product Advantages
*We are Hebei Lantan Import and Export trade company, A professional pipe and sheet manufactuere and export company, We have all pipe and sheet production, supply and related auxiliary construction experience.
*We have a professional technical team, can provide technical support.
*We have exported our products to many countries of Asia, South America and Africa, And other country.
*Convenient in transportation
Good corrosion resistance and chemical-proof
Small liquid resistance
Long life-spans
Excellent in low temperature impact resistance
Reliable connection
Superior stress cracking resistance
*We have a professional technical team, can provide technical support.
*We have exported our products to many countries of Asia, South America and Africa, And other country.
*Convenient in transportation
Good corrosion resistance and chemical-proof
Small liquid resistance
Long life-spans
Excellent in low temperature impact resistance
Reliable connection
Superior stress cracking resistance
Our Service
Customized Service:
With our own mould workshop, customzied service is avaiable.
With our own mould workshop, customzied service is avaiable.
OEM Service:
We can offer OEM service according to customers' Logo, package, etc.
Free Samples:
Customers just need to afford the shipping freight to get free samples.
Online Service:
24 hours online service available.
Easy Payments:
T/T, L/C, Western Union, Paypal, etc. Acceptable.
Transport of goods:
Good service and superior speed.
We can offer OEM service according to customers' Logo, package, etc.
Free Samples:
Customers just need to afford the shipping freight to get free samples.
Online Service:
24 hours online service available.
Easy Payments:
T/T, L/C, Western Union, Paypal, etc. Acceptable.
Transport of goods:
Good service and superior speed.
FAQ
Q1. What material of pipe are you specialized in?
We manufacture PC sheet, PMMA sheet, PVC sheet, And PE, HDPE, PPR, PB, PE-RT, PEX Aluminum composite pipes and fittings.
Q2. Please tell me your largest outer diameter for pipes.
We can produce 1600mm diameter (PE pipe) as the largest size.
Q3. The price of your products is higher than others.
We can't promise you the best price, but we can promise you the best quality. We import raw material from famous companies such as Borstar, LG Chemical, Chervrom, Hyosung, Lydellbasell, Sinopec.
Q4. For pipe fittings, what do you do mainly?
For fittings, coupling (socket), elbows, tee, reducer, union, valve, cap and copper insert fittings are our main products.
Q5. Where is your factory located in?
Our factory located in Baoding City, which is only one hour away from Beijing airport.
Q6: Can you provide us some samples for testing?
Of course, my friend. For small amount of samples, we can provide you for free.
Q7: How is our customer service?
All our sales representatives can speak fluent English. They will answer all of your questions in 24 hours.
We manufacture PC sheet, PMMA sheet, PVC sheet, And PE, HDPE, PPR, PB, PE-RT, PEX Aluminum composite pipes and fittings.
Q2. Please tell me your largest outer diameter for pipes.
We can produce 1600mm diameter (PE pipe) as the largest size.
Q3. The price of your products is higher than others.
We can't promise you the best price, but we can promise you the best quality. We import raw material from famous companies such as Borstar, LG Chemical, Chervrom, Hyosung, Lydellbasell, Sinopec.
Q4. For pipe fittings, what do you do mainly?
For fittings, coupling (socket), elbows, tee, reducer, union, valve, cap and copper insert fittings are our main products.
Q5. Where is your factory located in?
Our factory located in Baoding City, which is only one hour away from Beijing airport.
Q6: Can you provide us some samples for testing?
Of course, my friend. For small amount of samples, we can provide you for free.
Q7: How is our customer service?
All our sales representatives can speak fluent English. They will answer all of your questions in 24 hours.
