All specification size HDPE pipe HDPE silicon core pipe for cable protection

FOB Reference Price:Get Latest Price
$0.45 - $1.88 / Meters | 2000 Meter/Meters (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
Lantan
Model Number:
HDPE
Material:
PE
Specification:
32/28,40/33,50/42, 60/50
Length:
1000m above
Thickness:
2-5.0mm
Standard:
ISO9001:2008
Product name:
HDPE silicon core pipe
Color:
Black,red,white, yellow etc
Application:
Electric Wires Installation
Feature:
Corrosion resistance, No leakage, High toughness.
Size:
32/28,40/33,50/42, 60/50
Usage:
Wire Protection
Sample:
Availiable
Certification:
ISO Certificate
Life span:
50 Years Under Normal Conditions
Supply Ability
Supply Ability:
5000 Meter/Meters per Day
Packaging & Delivery
Packaging Details
1000meter, 2000meter/Each volume, Or as client's required.
1. Normal packing( Standard exporting package, Plastic film or bulk).
2. As per customer's request.
Port
Tianjin port, China.
Lead Time :
After sign contract and receive prepaid,Within 14days sent goods
Specification
Product Name
HDPE silicon core pipe
Materials
HDPE, Sinopec materials, and others.
Color
Black,red,white, yellow etc
Brand
LANTAN
Size
32/28,40/33,50/42, 60/50
Length
1000m/2000/each volume.
Or as required

Physical properties:

Outer wall of hardness : ≥59( Shore D)
Lining friction coefficient
Static:≤0.25
Dynamic:≤0.15
Tensile strength(MPa): ≥21
Elongation at break(%): ≥350
Maximum traction load(N): ≥8000
Cold bending radius(mm): 400
Nominal pressure(KN/m2): ≥50
Brittle temperature (℃):- 75
Melt flow rate (g / 10 min) MFR (190/2.16):≤0.5

Specification size:

Cable diameter(mm): 11-36
Silicon pipe diameter(mm): 24-55.

Product Description

Product Features:

1,The lining of the silicon core layer is solid, permanent lubricant;
2,The lining of the silicon core layer is pressed by synchronization in high density polyethylene pipe wall, and evenly distributed throughout the pipe wall, not peeling off.

3,The lining of the silicon core layer does not react with water, wash water pipe after an accident.

4,The lining of the silicon core layer and high density polyethylene with the same physical and mechanical properties;
5,Internal friction characteristics of silicon core layer remains the same, cable in the pipe can be extracted repeatedly, blowing method, one can blow cable > 1000 m or above;


Product Introduce:

HDPE silicon core pipe is a kind of novel composite pipe wall with silica gel mass solid lubricant.
By three plastic extruding machine synchronous extrusion compound, main raw materials for high density polyethylene, core layer to the lowest friction coefficient solid lubricant silica gel quality.The widely used optical cable communication network system.

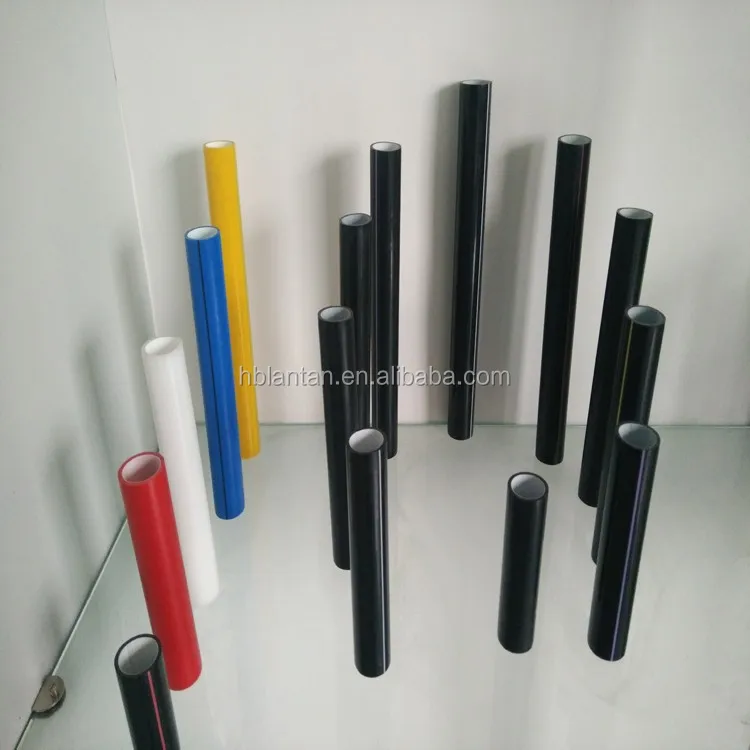

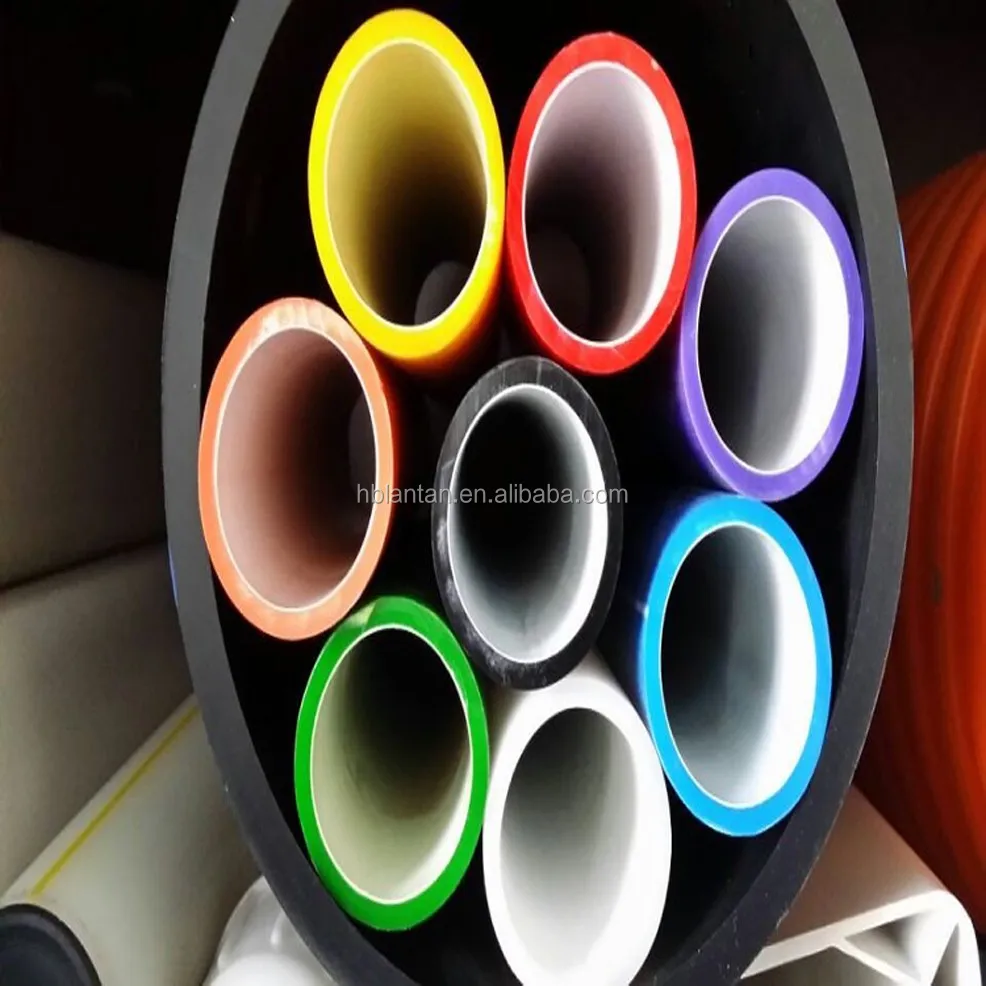

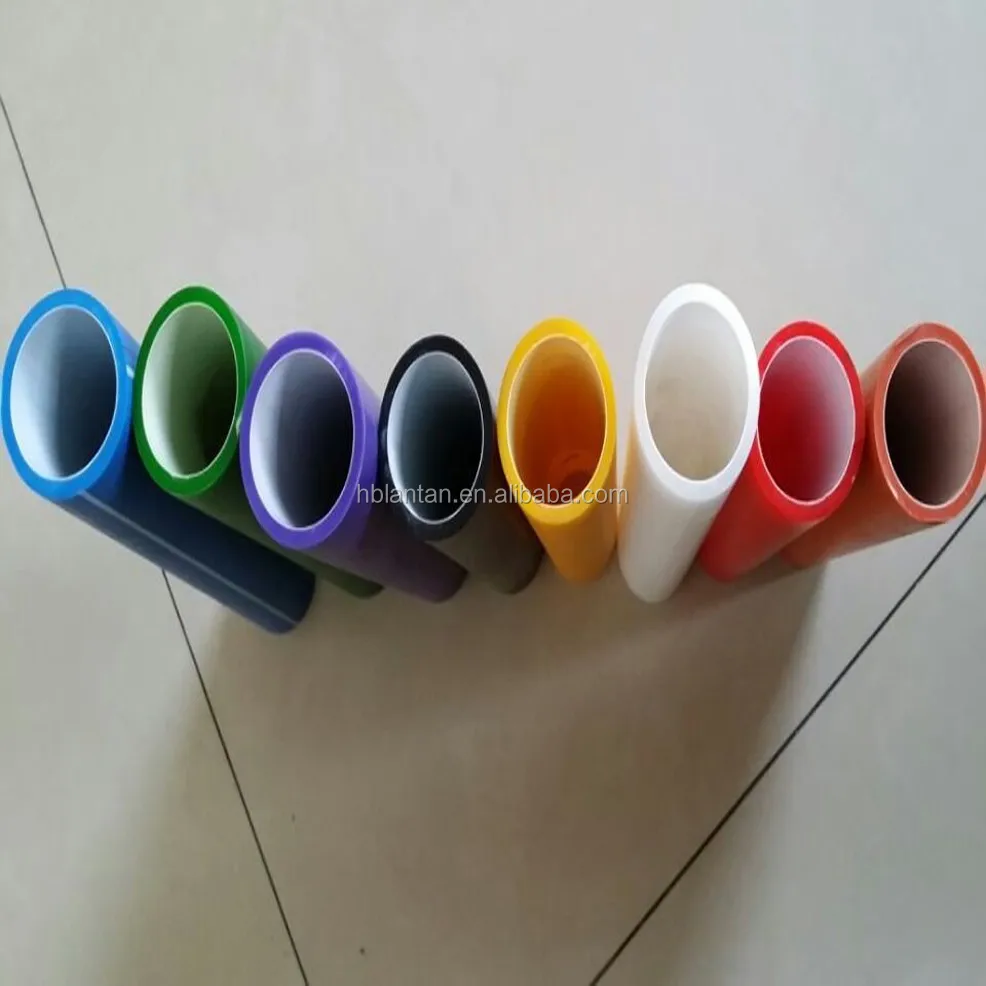

Detailed Images
Our Company


Product Advantages
*We are Hebei Lantan Import and Export trade company, A professional pipe manufactuere and export company,  We have HDPE water pipes production, supply and related auxiliary construction experience.
*We have a professional technical team, can provide technical support.
*We have exported our products to many countries of Asia, South America and Africa, And other country.
*Convenient in transportation
Good corrosion resistance and chemical-proof
Small liquid resistance
Long life-spans
Excellent in low temperature impact resistance
Reliable connection
Superior stress cracking resistance
Our Service
Customized Service:
With our own mould workshop, customzied service is avaiable.

OEM Service:
We can offer OEM service according to customers' Logo, package, etc.

Free Samples:
Customers just need to afford the shipping freight to get free samples.

Online Service:
24 hours online service available.

Easy Payments:
T/T, L/C, Western Union, Paypal, etc. Acceptable.

Transport of goods:
Good service and superior speed.
FAQ
Q1. What material of pipe are you specialized in?
We manufacture PE, HDPE, PPR, PB, PE-RT, PEX Aluminum composite pipes and fittings.

Q2. Please tell me your largest outer diameter for pipes.
We can produce 1600mm diameter (PE pipe) as the largest size.

Q3. The price of your products is higher than others.
We can't promise you the best price, but we can promise you the best quality. We import raw material from famous companies such as Borstar, LG Chemical, Chervrom, Hyosung, Lydellbasell, Sinopec.

Q4. For pipe fittings, what do you do mainly?
For fittings, coupling (socket), elbows, tee, reducer, union, valve, cap and copper insert fittings are our main products.

Q5. Where is your factory located in?
Our factory located in Baoding City, which is only one hour away from Beijing airport.

Q6: Can you provide us some samples for testing?
Of course, my friend. For small amount of samples, we can provide you for free.

Q7: How is our customer service?
All our sales representatives can speak fluent English. They will answer all of your questions in 24 hours.
Contact Information
Contact( Export manager): Mr Darren Walker
